ART810 Bench Plate Beveling Machine

The ART810 is the same internally as the ART850.  The ART810 includes two sets of work tables, the V configuration for external linear chamfers, and a flat table for internal and external linear chamfers.

For external linear chamfers, two hardened and ground work tables  570x100x17mm thick are provided and are mounted in the V configuration.   Cutting tool (ART 844) with cutting tool insert (ART865) for steel is included.   The automatic feed option applies only to the V work table configuration.

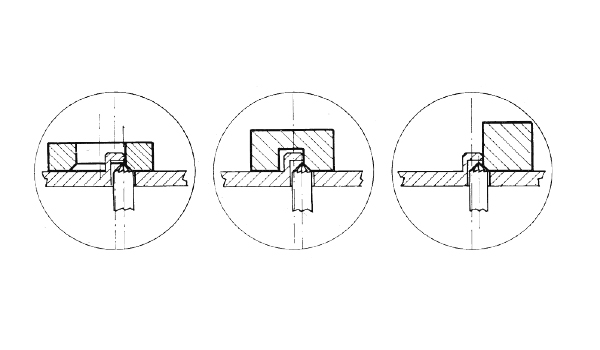

Internal and external linear chamfers are machined utilizing the 500x320x14 mm thick hardened and ground work table and cutting tool (ART361608/3 or ART361608/1).  Both the work table and cutting tool ART361608/3 for cutting steel are included.

You may optionally purchase a trolley, a tubular base, or a cutting tool with inserts that are brazed diamond for chamfering plastic materials. This machine is only available with the power option of 220 VAC 1-phase 60 Hz.

ART850 & ART810 Specifications

	ART.850	ART.810
Motor Power	0.75 kW	0.75 kW
Chamfering Angle	45°	45°
Cutter Speed	0 to 6000 rpm (opt 0-10000 rpm)	0 to 6000 rpm (opt 0-10000 rpm)
Materials	stainless, steel, light alloys (opt plastic)	stainless, steel, light alloys
Max Chamfer Depth	7 mm	External chamfer: 7 mm Internal chamfer: 2 mm
Max Chamfer Width	10 mm	External chamfer: 10 mm Internal chamfer: TBD mm
Applications	External linear chamfer	External linear chamfer Internal linear chamfer

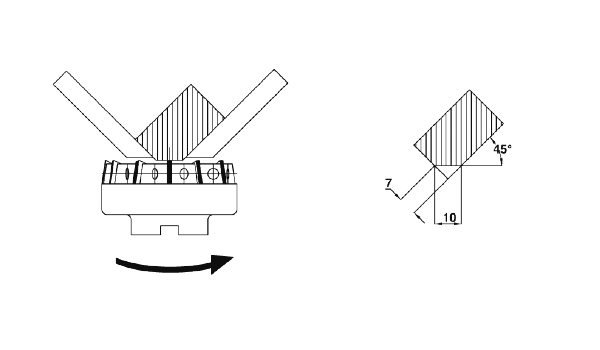

Bevel Profile
Options	0 to 10000 rpm Cutter for plastic	Automatic Feed   (internal chamfer) 0 to 10000 rpm Cutter for plastic
Accessories	Trolley Tubular Base	Trolley Tubular Base
Weight	57 kg	75 kg
Shipping dimensions	640x450x540mm	640x450x540mm

STD   standard
STL   steel
SS   stainless steel and alloys
Al   aluminum and light alloys
CI   cast iron

(A) These cutting tools do not accept cutting tool inserts. They are complete for machining as supplied.
